Product Overview

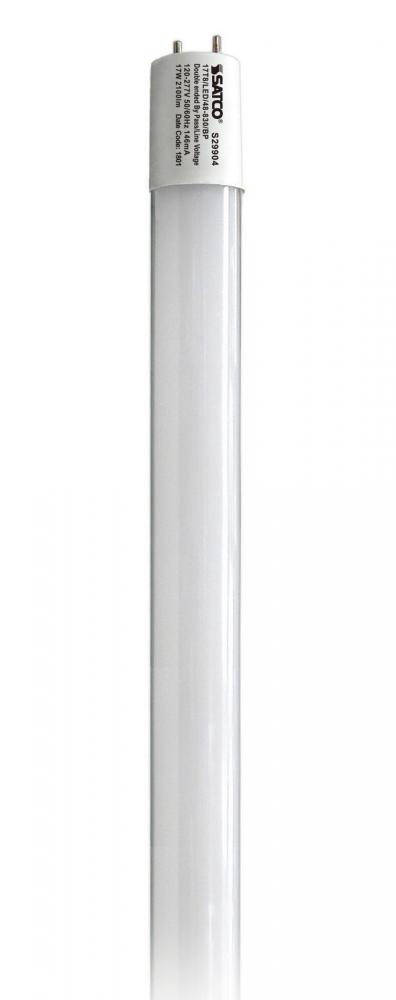

17 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 2100 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K

Bulb Shape:

T8

Diameter:

1

EA Length:

48.43

Harmonized Codes:

8539.52.0051

Length:

48

Lumens:

2100L

Shap Carton Width:

1.18

Ship Carton Height:

1.18

Ship Weight:

0.52

Warranty:

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight:

0.44

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

210

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.039

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

123.53 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

32W

Incandescent Equivalent:

100W

Installation Notes:

Not for use in vapor tight fixtures. Existing wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets.

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Lens Material:

Glass

Location Rating:

Damp

Material:

Glass

Nominal Length:

48

NSF Approved:

Yes

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

17T8/LED/48-830/BP 120-277V

Specification Notes:

Built-in shock resistant circuit - (not hot until both ends are installed)

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Tube Guard Use:

Yes

Wattage Selectable:

No

Watts:

17W
