Product Overview

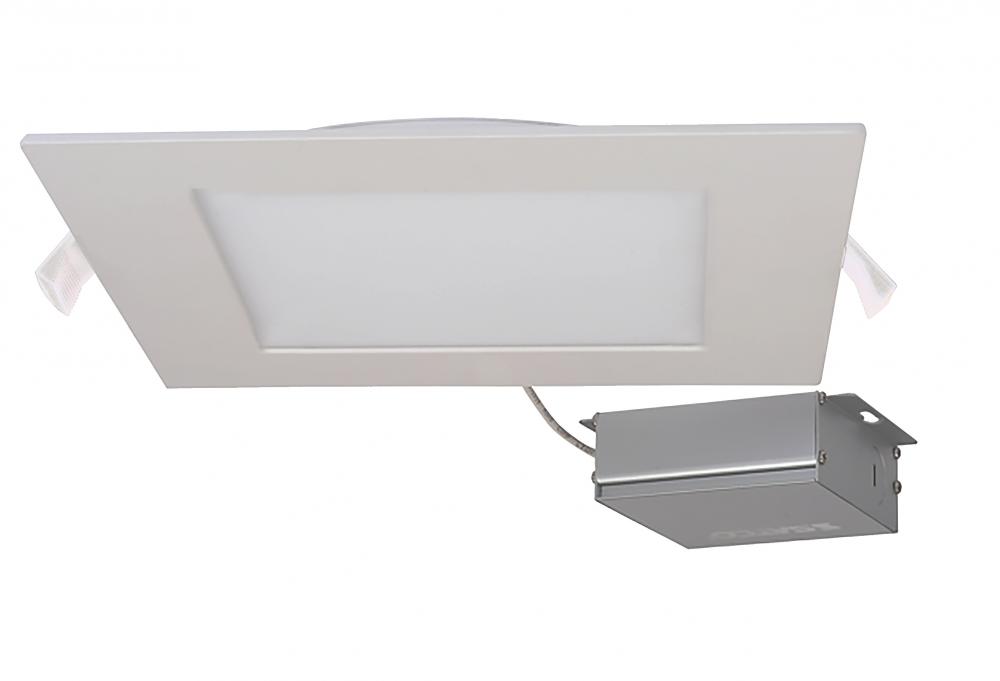

24 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 3000K; 120 volt; Dimmable; Square; Remote Driver

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Additional Info:

Integrated j-box for direct wire installation

Bulb Hours:

50000

Bulb Kelvin:

Warm White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Length:

8.880000000000001

Lumens:

1700L

Ship Carton Height:

9.5

Ship Carton Length:

1.88

Ship Carton Width:

10.81

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.200A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Spread:

108

CA Prop-65:

Lead

Carton Cubic Feet:

0.1117

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

8.125 in. Cutout

Clearance Height:

2

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Efficacy:

70.83 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Square

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

120W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Material:

Aluminum

Max Drywall Thickness:

5/8 in.

Mounting Procedure:

Ceiling

Operating Temprature:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.99

Quantity In Pack:

1

Rec Spacing Between Fixtures:

6 ft. to 8 ft.

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

24WLED/DW/EL/8/930/SQ/RD

Sloped Ceiling Compatible:

No

Temperature (CCT):

3000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

2.01
